Rear Cassette 10-speed 11-38 CAD Model

Rear cassette 10-speed 11-38T bike part 3D model. Accurate rear sprocket geometry for drivetrain visualization, engineering reference, and CAD renderings. Suitable for road or mountain bicycle designs needing a detailed 10-speed cassette component.

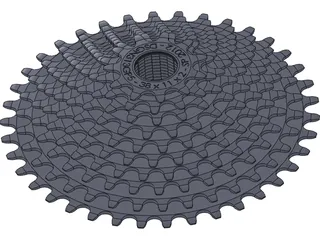

Rear Cassette 10-speed 11-38 3D Model main preview

Overview

Download the Rear Cassette 10-speed 11-38 CAD Model available in STEP and IGES CAD file formats. Converted polygonal versions also available in MAX, FBX, OBJ, BLEND, C4D file formats.

This solid CAD 3d model compatible with AutoCAD, SolidWorks, Inventor, Pro/Engineer, Siemens NX, PTC Creo, Fusion 360, Solid Edge, CATIA, ACIS and other CAD/CAM/CAE packages. Converted versions compatible with 3ds Max, Maya, Blender, Cinema 4D, Unreal Engine, Unity, Lightwave, Softimage, SketchUp, and other 3D modeling, animation, game design and AR/VR packages.

10-speed rear bicycle cassette, parametric with ability to alter each gear teeth number, also chain pitch and length.

Uploaded by Scott Pickard on March 2012

License

Royalty-Free License.
Commercial and editorial use according to site license terms.
Redistribution of source files is not allowed.
Please review the full license details before using the model in published work.
