Silo Discharge Valve CAD Model

Silo discharge valve industrial 3D model for bulk material handling systems. Detailed design for connecting and controlling flow from storage silos to conveyors, chutes, and hoppers. Ideal for engineering visualization, product design, and documentation in manufacturing and process industries.

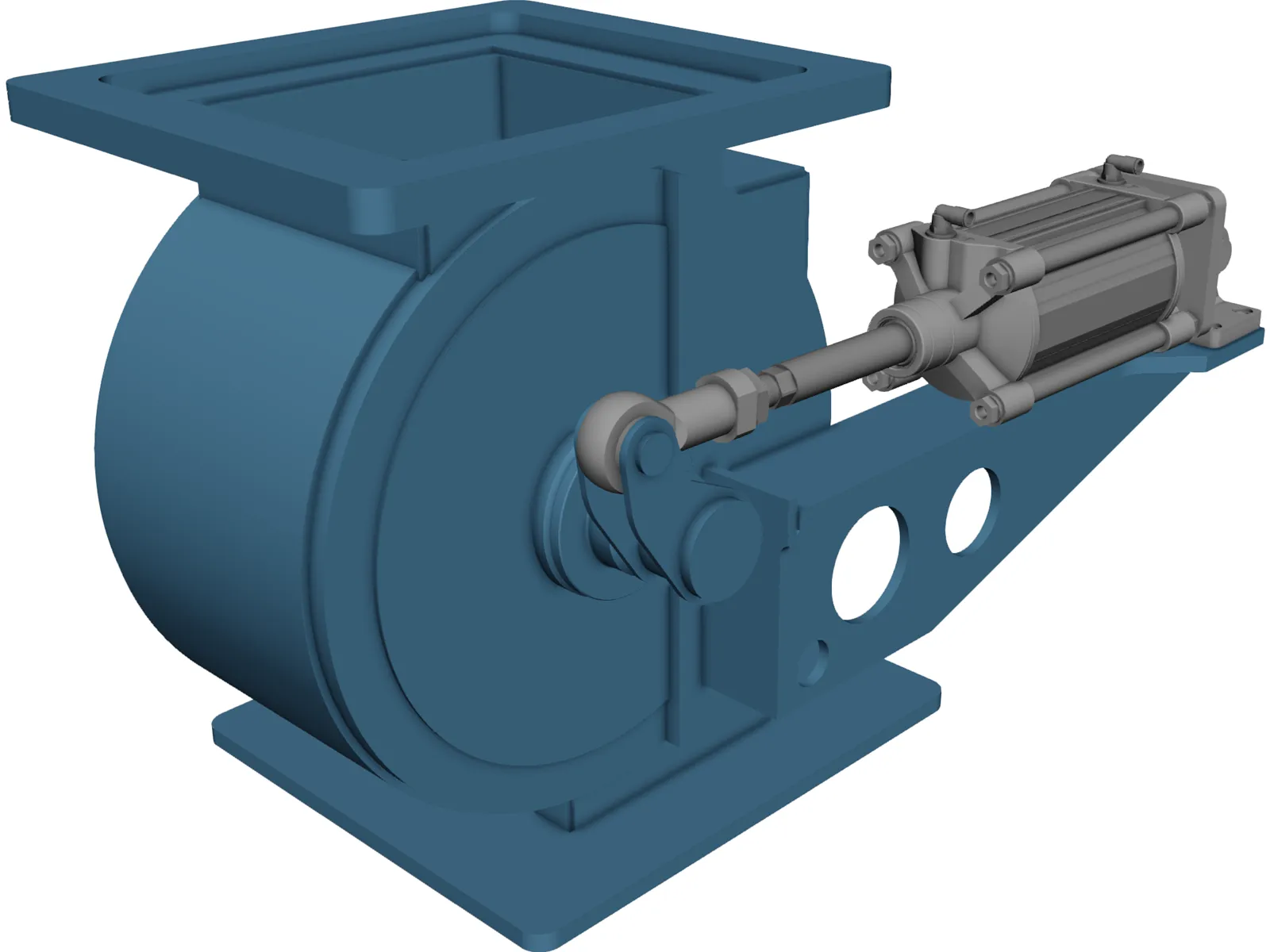

Silo Discharge Valve 3D Model main preview

Overview

Download the Silo Discharge Valve CAD Model available in STEP and IGES CAD file formats. Converted polygonal versions also available in MAX, FBX, OBJ, BLEND, C4D file formats.

This solid CAD 3d model compatible with AutoCAD, SolidWorks, Inventor, Pro/Engineer, Siemens NX, PTC Creo, Fusion 360, Solid Edge, CATIA, ACIS and other CAD/CAM/CAE packages. Converted versions compatible with 3ds Max, Maya, Blender, Cinema 4D, Unreal Engine, Unity, Lightwave, Softimage, SketchUp, and other 3D modeling, animation, game design and AR/VR packages.

Silo discharge valve 250 wide.

Uploaded by Tamas Halasz on December 2010

License

Royalty-Free License.
Commercial and editorial use according to site license terms.
Redistribution of source files is not allowed.
Please review the full license details before using the model in published work.
