Butterfly Valve CAD Model

3D model of a butterfly valve with accurate geometry for industrial piping systems. Includes a detailed valve body, disc, stem, and mounting components, ideal for visualization, engineering presentations, and 3D printing references. Suitable for CAD workflows and mechanical design projects.

Overview

Download the Butterfly Valve CAD Model available in STEP and IGES CAD file formats. Converted polygonal versions also available in MAX, FBX, OBJ, BLEND, C4D file formats.

This solid CAD 3d model compatible with AutoCAD, SolidWorks, Inventor, Pro/Engineer, Siemens NX, PTC Creo, Fusion 360, Solid Edge, CATIA, ACIS and other CAD/CAM/CAE packages. Converted versions compatible with 3ds Max, Maya, Blender, Cinema 4D, Unreal Engine, Unity, Lightwave, Softimage, SketchUp, and other 3D modeling, animation, game design and AR/VR packages.

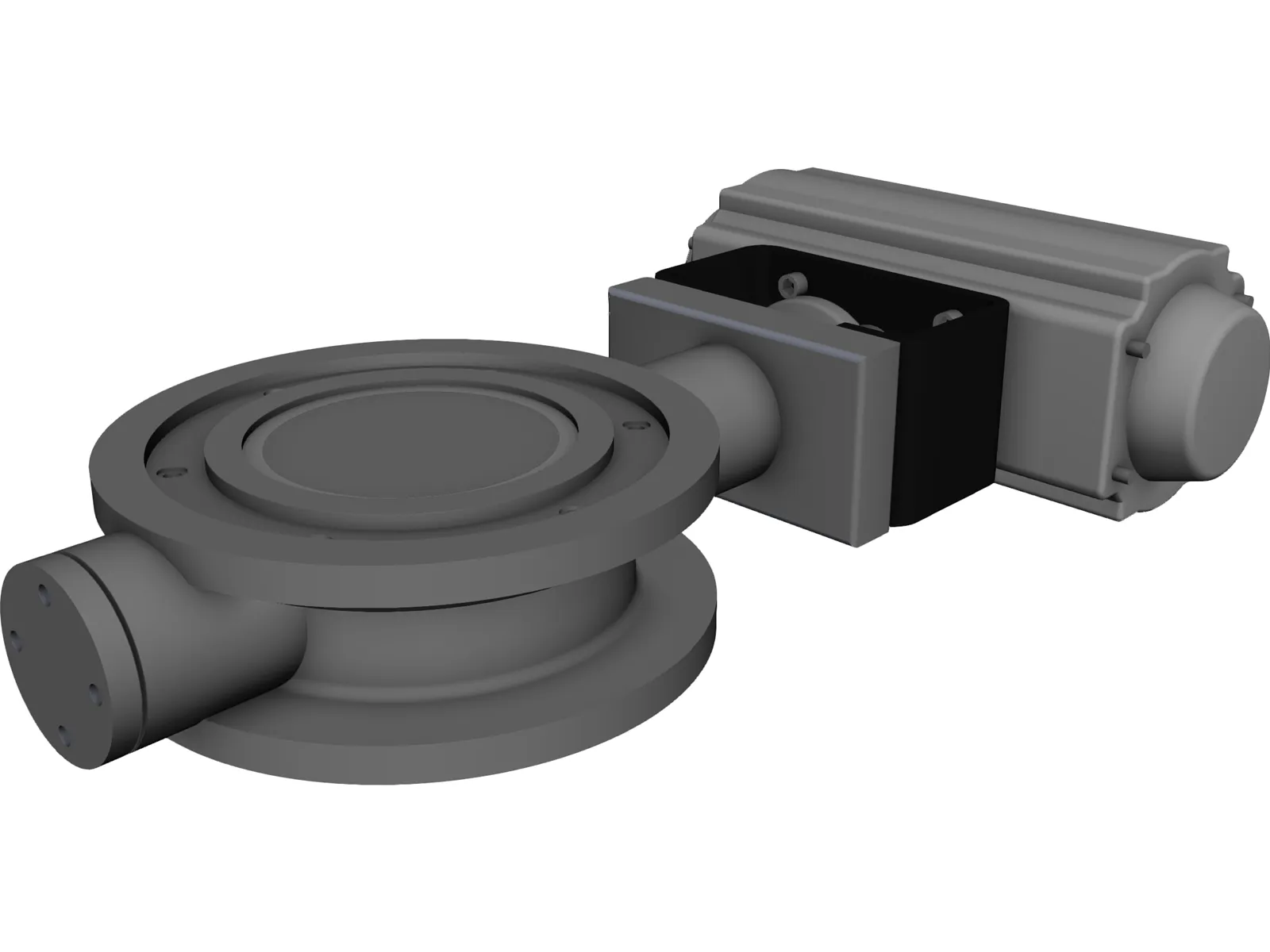

Butterfly Valve with Actuator.

Uploaded by Ajay Govind on April 2010

License

Royalty-Free License.
Commercial and editorial use according to site license terms.
Redistribution of source files is not allowed.
Please review the full license details before using the model in published work.
