Peaucellier Linkage Free 3D Model

Peaucellier–Lipkin linkage industrial 3D model for CAD and engineering visualization. Accurate geometric mechanism representation with classic four-bar structure, ideal for kinematics study and educational demonstrations. Download and use as a detailed reference model in mechanical design workflows.

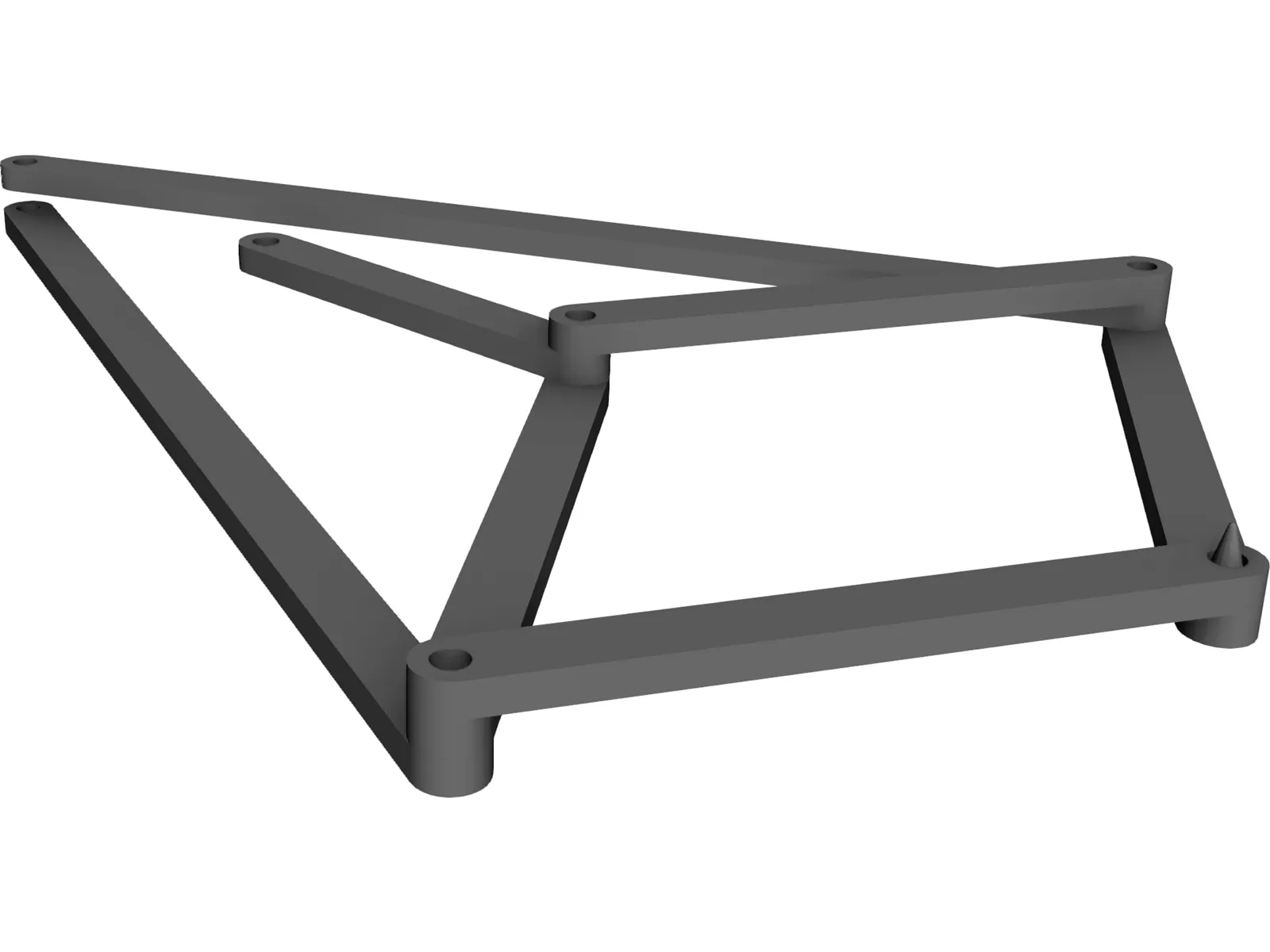

Peaucellier Linkage 3D Model main preview

Overview

Download the Peaucellier Linkage Free 3D Model available in MAX, FBX, OBJ, BLEND, C4D file formats.

This polygonal 3d model compatible with 3ds Max, Maya, Blender, Cinema 4D, Unreal Engine, Unity, Lightwave, Softimage, SketchUp, and other 3D modeling, animation, game design and AR/VR packages.

Peaucellier straight line linkage mechanism. Pure straight-line motion from a rotationanl input.

Uploaded by Sam Worthington on September 2007

License

Royalty-Free License.
Commercial and editorial use according to site license terms.
Redistribution of source files is not allowed.
Please review the full license details before using the model in published work.
